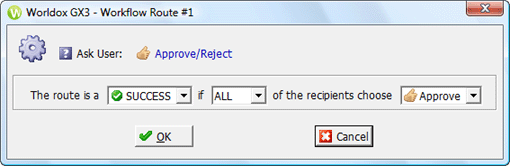

Workflow Route dialog - second

Used in creating and updating workflows or routes. This dialog determines how success or failure will be judged on this workflow route request.

Field/Choice

Description

This route is a

Click the down arrow to select SUCCESS or FAILURE.

if

Click the down arrow to select a percentage of response required to declare the effort a success or failure.

of the recipients choose

Click the down arrow to select the criteria for your success/failure judgment. Available choices here reflect the type of user input selected in the first Workflow Route dialog:

        If the request to participants is Review/Comment, the only possible choice in this field is REVIEWED.

        If the request is Approve/Reject, the choices are APPROVE or REJECT.

        If the request is for a rating decision, the drop-down list would show ratings:
